ATP PNEUMATIC FEATHER TOUCH

DTP

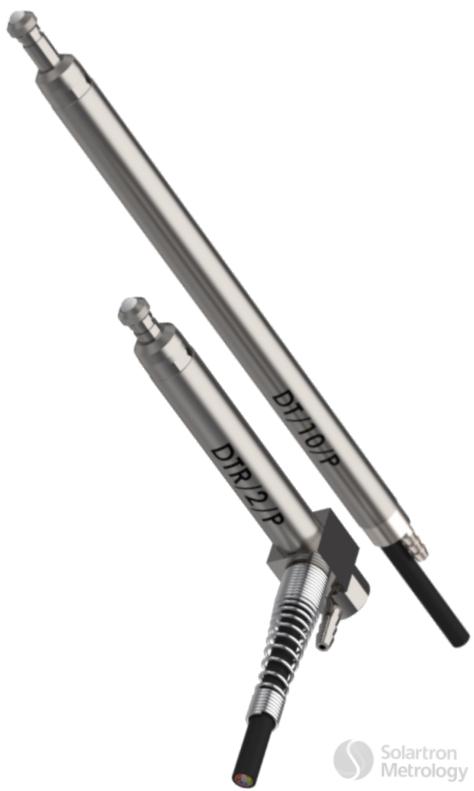

LVDT Gauge Probe | Feather Touch Pneumatic Push - AT
  • Standard contact sensor tip force of 0.18N (options available)
  • ± 1, ± 2,5, ± 5, ± 10 mm displacement transducer measuring ranges
  • Linearity better than 0.5% of precision measurement
  • Repeatability precision better than 0.05 µm
  • Range of contact sensor tips available
  • Pneumatic actuation
  • IP50 sealing (fully sealed options available)
  • Inductive sensors with excellent sideload capability
  • Linear Variable Differential Transformer (LVDT) or Half Bridge options
  • Displacement sensors available with vacuum retract
  •

    Feather Touch LVDT Probes have been designed to gauge delicate surfaces such as glass, thin sections, pharmaceutical products and tiny electro mechanical components. Whereas the traditional LVDT gauging probe exerts a force of 0.7N, the LVDT Feather Touch probe, when operated horizontally, exerts a mere 0.18N.
