DP SPRING

DPS

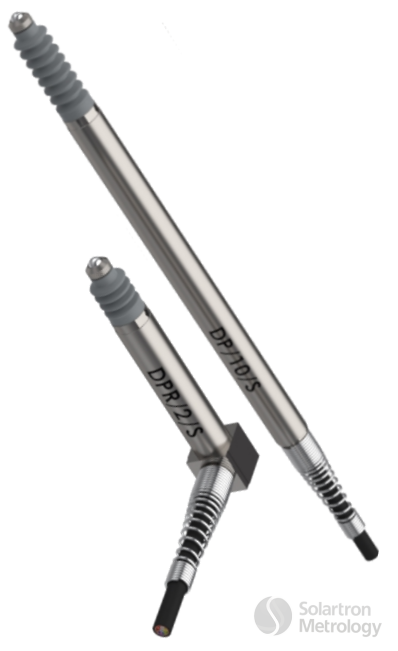

DP/S  SPRING PUSH



  • 0.5,1,2,5,10,20 and 30 mm displacement transducer measuring ranges
  • Accuracy better than 0.1 µm
  • Repeatability precision better than 0.05 µm
  • Resolution better than 0.01 µm
  • Range of contact sensor tips available
  • Spring actuation
  • Standard contact sensor tip force of 0.7N (other options available)
  • IP65 sealing (fully sealed options available)
  • Displacement sensor with excellent sideload capability
  • Superior performance compared to traditional Linear Variable Differential Transformer (LVDT) displacement sensors
  • High resistance to external magnetic fields which can interfere with measurements from typical LVDTs
  • The DP range of spring push probes is the workhorse of the gauging industry. Very high resolution excellent linearity and high data speeds is coupled with outstanding measurement repeatability, Long life bearings and IP65 sealing ensures that the probes maintain their performance for millions of measurements.
