SPRING

Solartron Metrology contact digital gauging probes or displacement sensors provide the gauge builder with the most cost-effective solution for a range of dimensional precision measurement and positioning applications.

The digital gauge probe combines the strong features of a conventional linear variable differential transformer (LVDT) with enhanced accuracy. The accuracy specified for the digital sensor is total accuracy unlike conventional LVDTs which specify linearity. Another benefit of the digital displacement sensor (Gauge probe) is the probe requires no set up or adjustment with conditioning electronics like a traditional LVDT because the digital displacement sensor provides a precision measurement straight out of the box. Combining multiple sensors using the Orbit Digital Measurement network is easy and data can be read using a Solartron readout or the Gauge Computer Software making system integration simple.

  • D12PS SPRING

    The Rugged digital probe is an option for environments where a standard probe may be easily damaged. The 12 mm body has thicker walls than the standard gauge probe, while a larger bearing with a 5 mm diameter shaft copes with sideload and impacts better.

    Keep Reading
  • D3PS
    D3P SPRING

    Quite possibly the world’s thinnest probe, the tiny 3 mm diameter allows for even tighter packing densities for measuring features on intricate parts.

    Keep Reading

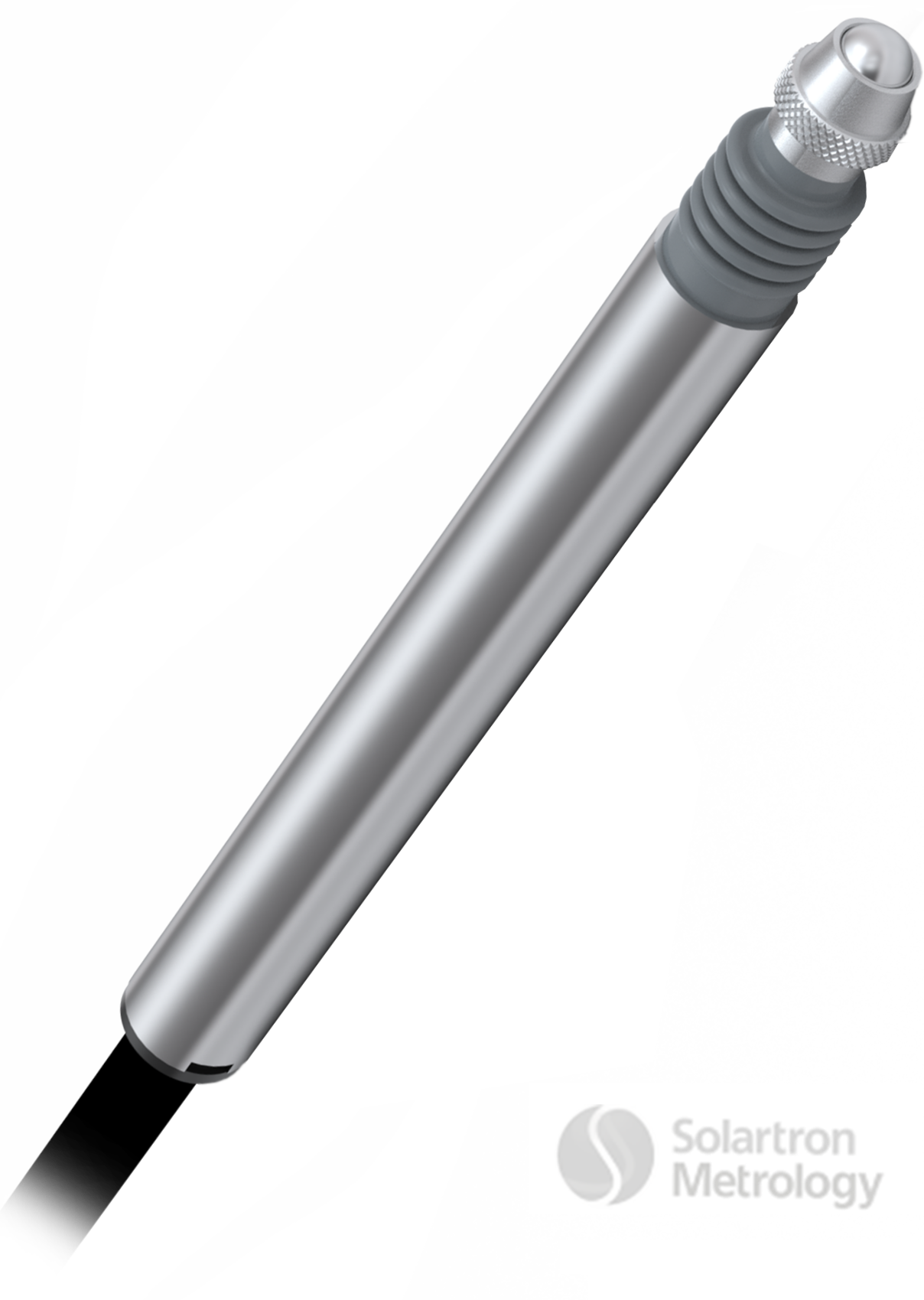

  • D6P SPRING

    With the D6P probes, a 25% diameter reduction over conventional probes has been achieved, yet performance and life expectancy has been maintained. Long life precision bearings ensure that probes maintain their performance for millions of cycles

    Keep Reading
  • D6T 6mm DIAMETER LOW TIP FORCE SPRING

    Feather Touch transducers have been designed especially to gauge or measure delicate surfaces such as car windscreens, pharmaceutical bottles, electro-mechanical components and plastic parts. Where as a traditional transducer exerts a tip force of approximately 0.7 N, the Feather Touch exerts a mere 0.18 N when used in the horizontal position. This reduction is achieved by replacing the gaiter with a close tolerance gland.

    Keep Reading
  • DPS
    DP SPRING

    The DP range of spring push probes is the workhorse of the gauging industry. Very high resolution excellent linearity and high data speeds is coupled with outstanding measurement repeatability, Long life bearings and IP65 sealing ensures that the probes maintain their performance for millions of measurements.

    Keep Reading
  • DSP SHORT PROBES SPRING

    New from Solartron Metrology displacement sensors with short body lengths enabling these gauge probes to be mounted in locations where standard displacement sensors will not fit.

    Keep Reading
  • DTS

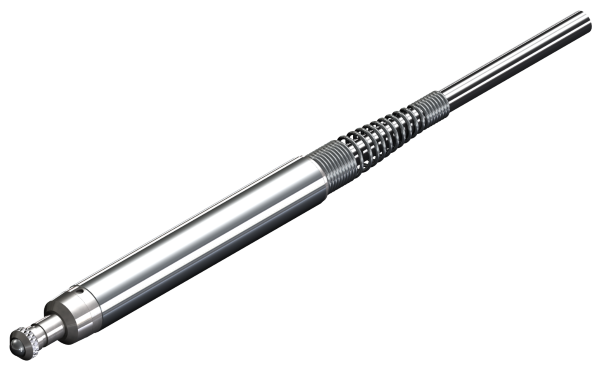

    DT FEATHERTOUCH SPRING

    Feather Touch transducers have been designed especially to gauge or measure delicate surfaces such as car windscreens, pharmaceutical bottles, electro-mechanical components and plastic parts. Where as a traditional transducer exerts a tip force of approximately 0.7 N, the Feather Touch exerts a mere 0.18 N when used in the horizontal position. This reduction is achieved by replacing the gaiter with a close tolerance gland. Despite the low volume of air flow the bearing is constantly purged, avoiding the build up of dust.

    Keep Reading

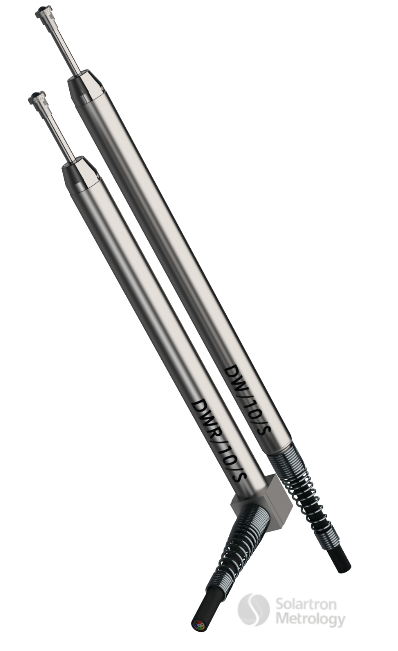

  • DW ULTRA LOW TIP FORCE SPRING

    The Ultra Feather Touch probe has so light a tip force, it is a viable alternative to a non-contact sensor in many applications.

    Keep Reading
  • DZ ULTRA SHORT SPRING

    The DZ range of probes are probably the shortest available on the market with a full calibrated measuring range of 1 mm or 2 mm. The unique bearing design creates a very short probe body while still maintaining the performance of a standard probe.

    Keep Reading
