DU - Parallel Flexure

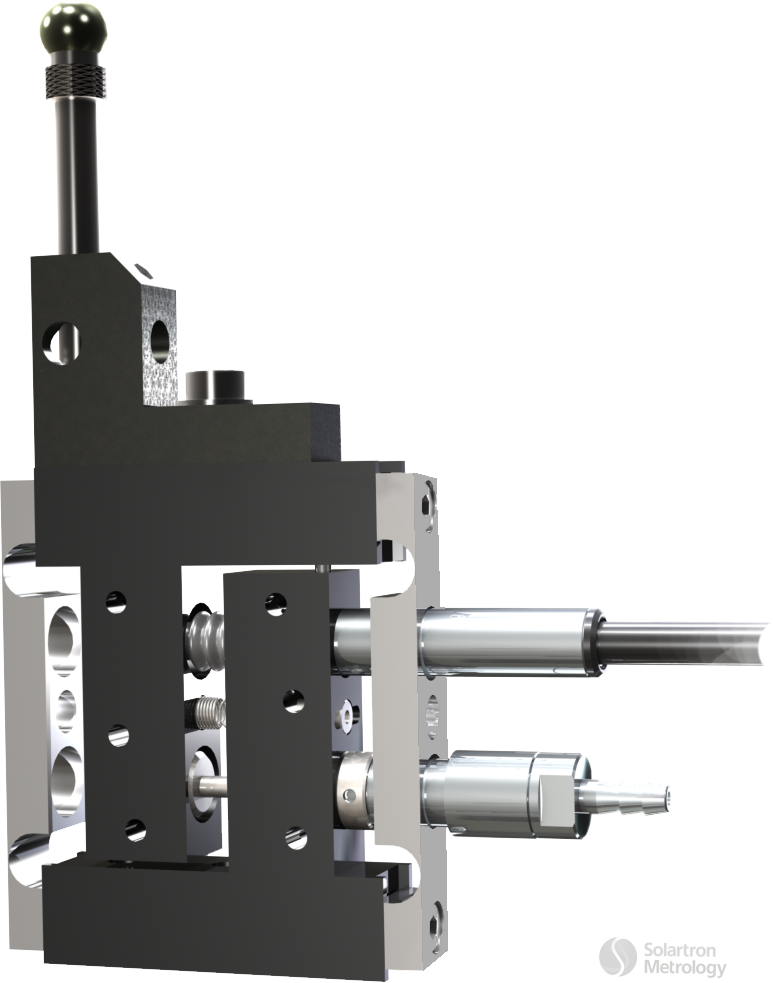

DUP
DU - Parallel Flexure

  • 0.5 1  and 2 mm measurement ranges
  • Accuracy better than 0.1 µm
  • Resolution better than 0.01 µm
  • Repeatability better than 0.05 µm
  • Spring actuation
  • IP65 sealing
  • Tested to more than 30 million operating cycles



  • Parallel Flexures with high resolution and excellent repeatability make Solartron’s Flexure Transducers the frst choice for high speed precision gauging. With no sliding moving parts, the flexure will maintain performance for millions of cycles and are virtually free from hysteresis. Flexures can be mounted such that there is little or no stress through the gauge line enablingprecision profling of moving materials such as rotating shafts, brake discs etc. With resolution better than 0.05 µm at speeds up to 3906 readings per second, the flexure with Orbit® provides an excellent dynamic solution
