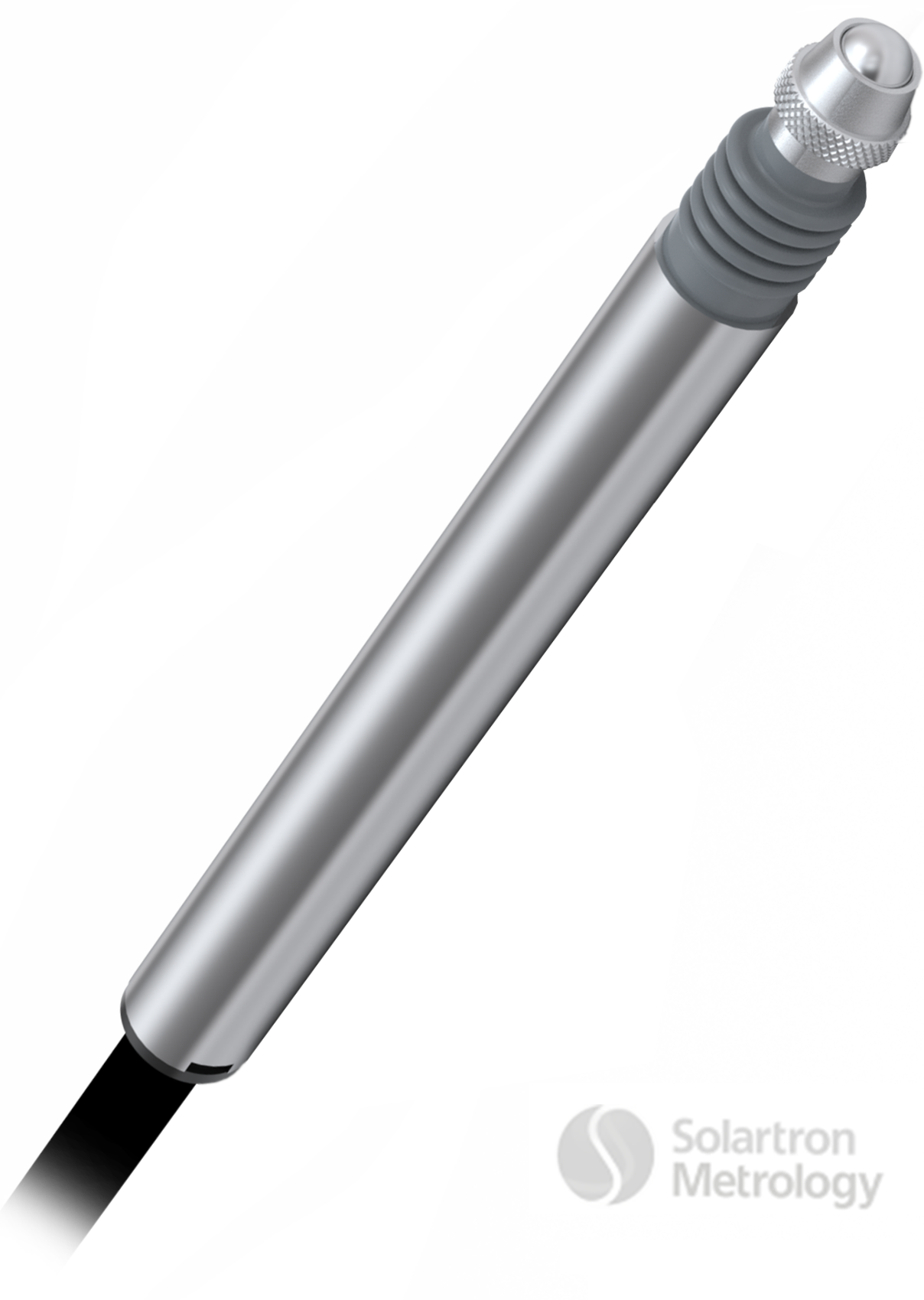

D6P SPRING

D6P/S  SPRING PUSH



  • 6 mm diameter body
  • Excellent for measuring features close together
  • 2 and 5 mm displacement transducer measuring  ranges
  • Accuracy better than 0.1 µm
  • Repeatability better than 0.05 µm
  • Resolution better than 0.01 µm
  • Range of contact tip sensor tips available
  • Spring actuation contact sensor
  • Standard gauge probe tip force 0.7N (other options available)
  • Displacement sensor with IP65 sealing
  • Superior performance compared to traditional Linear Variable Differential Transformer (LVDT) displacement sensors
  •

    With the D6P probes, a 25% diameter reduction over conventional probes has been achieved, yet performance and life expectancy has been maintained. Long life precision bearings ensure that probes maintain their performance for millions of cycles
